Optional Hose Assemblies & Equipment
Adaptability = Efficiancy
DUALCO is OEM throughout the energy industry.
These Hose and Equipment options fit DUALCO Hydraulic, Screw-Prime & other hand operated lubrication tools. fittings are manufactured to the highest standards with the best available materials. Many hose lengths, end combinations and assemblies are available. Please call us for any custom requirements.
• These hoses are for hand operated grease guns only!
• Operate with Caution & Safety.
• For Industrial Use Only.
Essential Hose Assemblies
10747
A integrated Hose swivel allows the GPH coupler to rotate freely before the hose is pressurized. For swiveling under pressure consider the 11317 which includes a 10641 In-line Swivel .
10750
Popular for lubricating plug valves, The 10750 is relatively easy to use and requires minimal maintenance.
10756
A “live” swivel allows the GPH coupler to rotate freely while the hose is pressurized. This hose assembly is popular for lubricating plug valves.

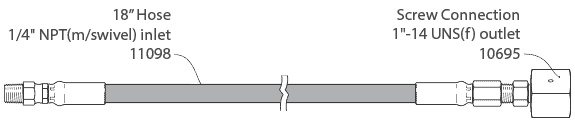

10775
Screw Connection Hose Assembly for lubricating vent cap fittings. 18″ overall length hose with screw connection coupler.
11013
The Thumb Screw Pressure Release on the GBH coupler makes it easier to disengage from the lubricant fitting if there is residual pressure. This assembly is standard with the 10635 Screw Prime Grease Gun Assembly.
11313
Similar to the 11013, This hose assembly has a 1/2”-27 (female) inlet fitting.
11317
A 10641 “live” In-line swivel allows the Heavy Duty GPH coupler to rotate freely while the hose is pressurized improving operator positioning and safety..
Advanced Hose Assemblies
10876
A pressure gauge allows for more lubricating efficiency and accuracy. A “live” swivel allows the GPH coupler to rotate freely while the hose is pressurized improving operator positioning and safety.
10650
In-Line Pressure gauges add lubricating efficiency and accuracy to this Multi-purpose hose.
10660
Combining both Straight and live Z-swivels for the ultimate in high pressure flexibility, this popular hose assembly includes a shut-off relief valve and in-line gauge.
10746
Combining both Straight and live Z-swivels for the ultimate in high pressure flexibility, this ultimate hose assembly includes a shut-off relief valve and a control valve.
10861
A Perfect Combination of options for maximum functionality. The Z-Swivel gives truly universal positioning flexibility. The heavy-duty GBH coupler with Pressure Release Valve make pumping and disengagement from the lubricant fitting easier and safer.
Button Head Couplers
• We have a complete selection of couplers, hose assemblies and options
| Model | Discription | Service | Connection |
| 10595 | Standard Button Head • Regular Duty | Pull-On | 7/16" - 27 NS(f) inlet |
| 10670 | Giant Button Head • Regular Duty | Pull-On | 7/16” – 27 NS(f) inlet |
| 10630 | Giant Button Head • 10670 w/ 10629 adapter | Pull-On | 1/8" NPT(f) inlet |
| 10665 | Standard Button Head • 10595 w/ 10629 adapter | Pull-On | 1/8" NPT(f) inlet |
| 10890 | Standard Button Head • (Ø 5/8") with Adapter | Push-On Only | 1/8" NPT(f) inlet |
| 10730 | Giant Button Head • Regular Duty | Pull or Push-On | 7/16" - 27 NS(f) inlet |
| 10860 | Giant Button Head • Regular Duty | Pull, Push or Hook-on | 7/16" - 27 NS(f) inlet |
| 10850 | Giant Button Head • Heavy Duty • Nylon Piston | Pull, Push or Hook-on | 1/4" NPT(f) inlet |
| 10855 | Giant Button Head • Heavy Duty • Steel Piston | Pull, Push or Hook-on | 1/4" NPT(f) inlet |
| 10885 | Giant Button Head • Heavy Duty • Steel Piston w/ Internal Auto Shut-off | Pull, Push or Hook-on | 1/4" NPT(f) inlet |
| 10335 | Giant Button Head • Heavy Duty w/ Pressure Release | Pull, Push or Hook-on | 1/4" NPT(f) inlet |
| 10990 | Manual Shut-off Relief Valve (In-Line Accessory) • 1/4" NPT(m) Outlet | 1/4" NPT(f) inlet | |
| 10629 | Coupler Adapter • 7/16" - 27 NS(m) > 1/8" NPT(f) | ||
Gauges
• Many other options are available. Please call for custom applications.
| Model | Discription | Connection |
| 10873 | 15,000 psi Gauge • Bottom Connection • 2.5" Face, Fluid Filled | 1/4" NPT(m) |
| 10599 | 20,000 psi Gauge • Bottom Connection • 4.0" Face, Fluid Filled | 1/4" NPT(m) |
| 11184 | Gauge Cover • 2.5" | - |
| 11475 | 15,000 psi Gauge w/Cover (10873+11184) • 2.5" Face, Fluid Filled | 1/4" NPT(m) |
| 11468 | 15,000 psi Gauge • Back Connection • 2.5" Face, Fluid Filled | 1/4" NPT(m) |
Gauge Tees
• Rated for 10.000psi
| Model | Discription | Material | A | C |
| 10637 | 1-1/4" Hex | 4140/ZP | 1-1/4" | 1/4" NPT(m) |
| 10844 | 1" Hex | Steel/ZP | 1" | 1/4" NPT(m) |
| 10620 | 1-1/4" Hex w/ Check Valve | Steel/ZP | 1-1/4" | 1/4" NPT(m) |
| 11331 | 1" Hex | Steel/ZP | 1" | 3/8" NPT(m) |
| B = 1/4" NPT(f) • All Tees | ||||
| D = 1/4" NPT(f) • All Tees | ||||
• No adapters are needed when assembling DUALCO Grease Guns with DUALCO Gauges and Gauge Tees.
Live Swivels
• Pressurized Hoses Will Not Twist!
| Model | Discription | Connection | Weight |
| 10641 | Basic Conectivity | 1/4" NPT(m) x 1/2"-27 NS taper (m) | 0.3 lb |
| 11337 | Basic Conectivity | 1/4" NPT(m) x 1/4" NPT(m) | 0.6 lb |
| 11589 | Basic Conectivity | 1/2" NPT(m) x 1/2" NPT(m) | 0.8 lb |
| 10642 | 90º • Flexible | 1/4" NPT(m) x 1/2"-27 NS taper (m) | 0.6 lb |
| 10764 | 90º • Flexible | 1/4" NPT(m) x 1/4" NPT(f) | 0.6 lb |
| 10744 | " Z " True Universal Flexibility | 1/4" NPT(m) x 1/2"-27 NS taper (m) | 1.0 lb |
| 11011 | " Z " True Universal Flexibility | 1/4" NPT(m) x 1/4" NPT(m) | 1.0 lb |
| 11219 | " Z " True Universal Flexibility | 3/8" NPT(m) x 1/2" NPT(m) | 1.5 lb |
| 11613 | " Z " True Universal Flexibility | 1/2" NPT(m) x 1/2" NPT(m) (Includes Bushing) | 1.8 lb |
Live Swivels allow pressurized hoses to effectively swivel providing ergonomic
positioning of the gun or applicator increasing speed and safety.
Carry Straps
• Lightweight and strong.
| Model | Discription |
| 10616 | For Screw Prime Grease Guns |
| 10644 | For Hydraulic Grease Guns |
| • Adjustable and extends to 46” | |
| • Weight 3-3/4oz. | |
These robust straps includes Shoulder Pad, Hooks, Rings and Link.
Hose Assembly Rating:
Warning!
Custom configurations are a speciality at DUALCO. • Many other hose lengths, end combinations and assemblies are available. Please call for any custom requirements.
DUALCO has been producing
professional lubrication products
since 1960.
Made and assembled in the USA.
100% repairable and recyclable.
